NEXT-GENERATION MOTOR CONTROLLERS
FOR HIGH PERFORMANCE EVs
- Model
- MC0-500
- Power
- 500 kW
- Voltage
- 1000 VDC
- Power density
- 104 kW/L
Industry-Leading Performance
Experience unprecedented power density with the Steinmetz controllers, setting new standards in the power electronics industry.
Power Density Comparison
We Don't Compete. We Dominate.
Power Density
Industry-leading power density that leaves competitors in the dust. More power, less space. Period.
Efficiency
>99% efficiency that doesn't just promise—it delivers. Maximum performance, minimal waste.
Usability
One-click auto-tuning. Open-source firmware. No more waiting weeks for support. It just works.
Motor Controllers
STEINMETZ /0-SERIES
Coming Soon
MC0-10Compact 1000V motor controller for robotics, test stands, and lower-power EV systems.
Coming 2027
Coming Soon

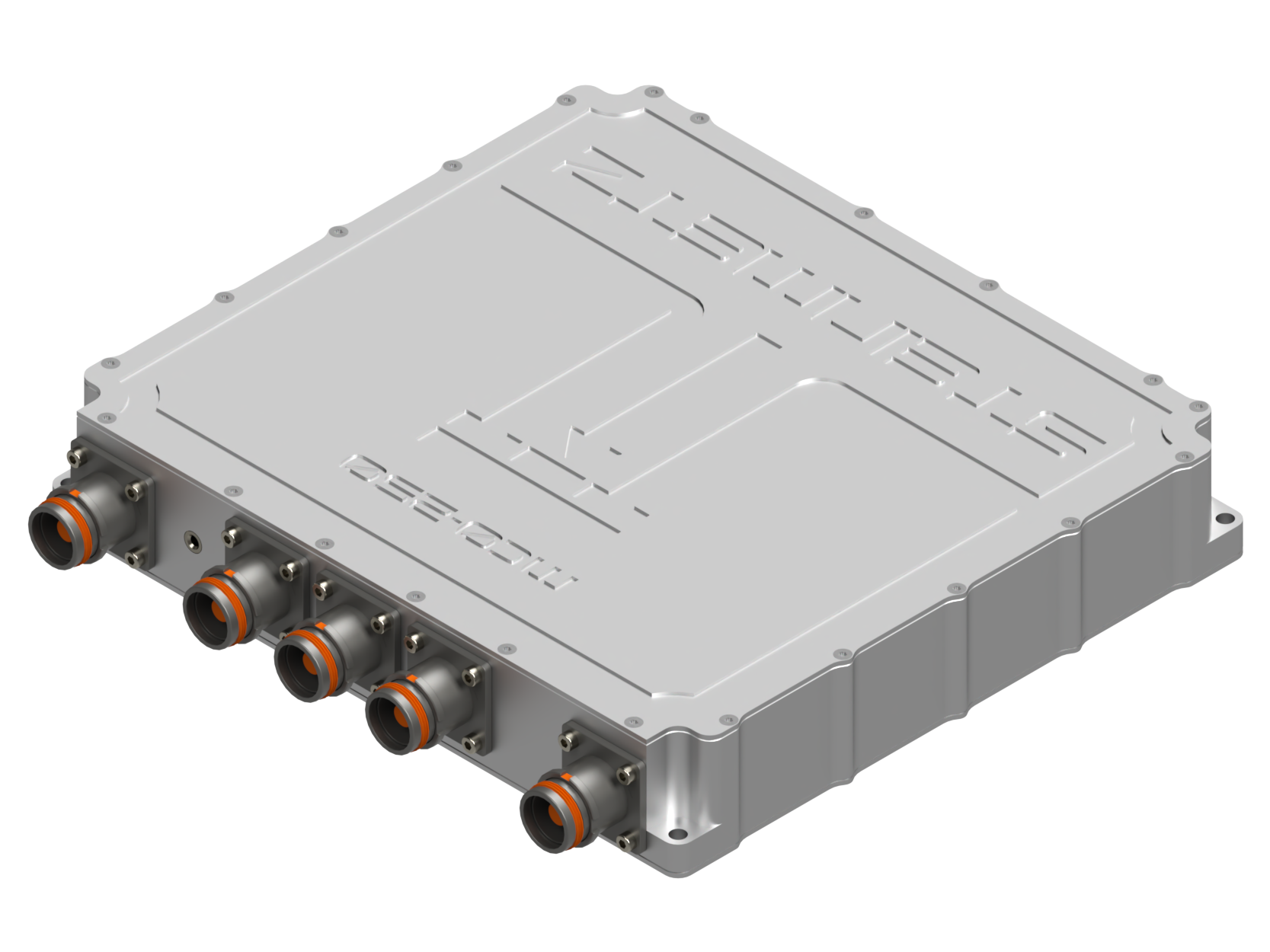

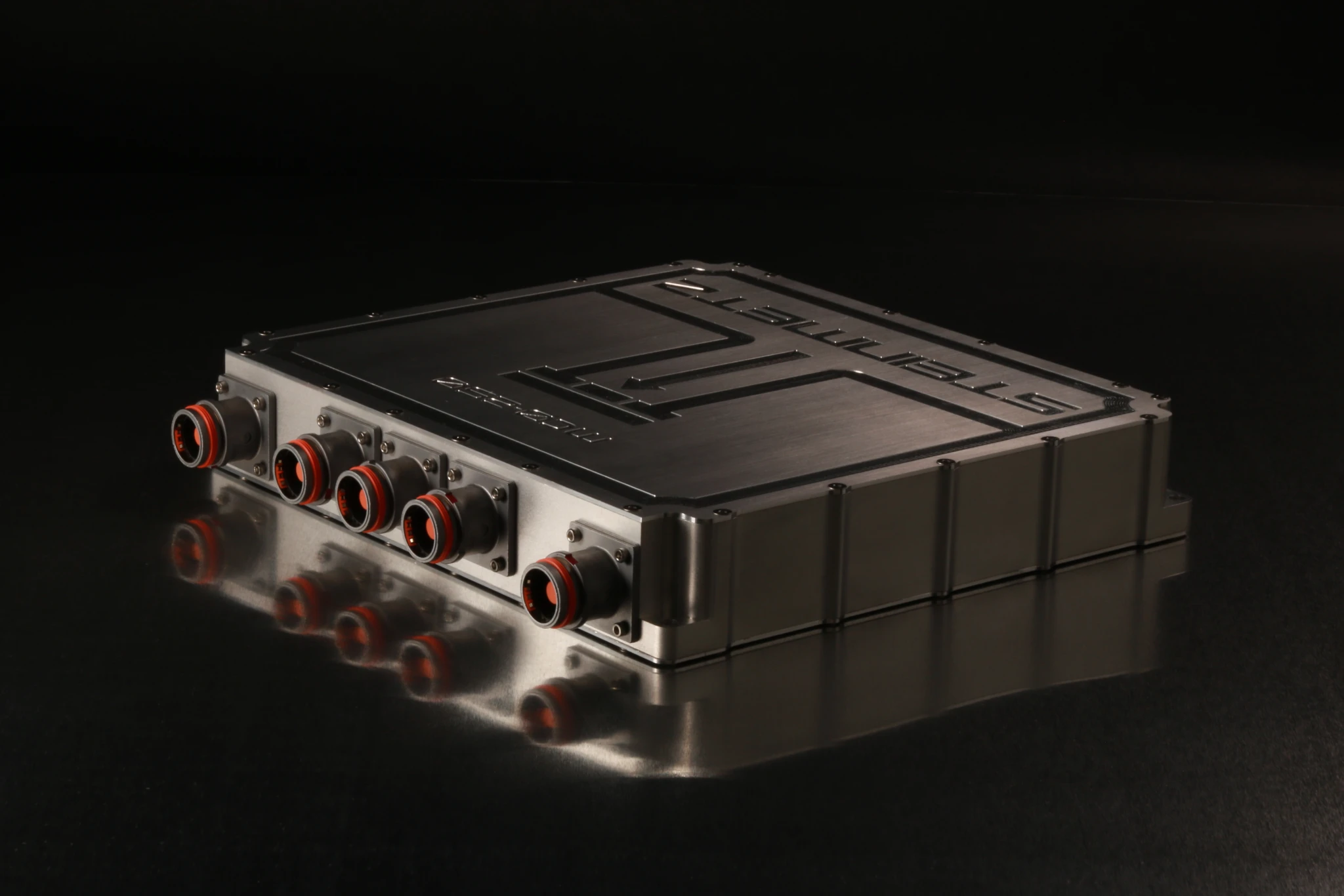

MC0-250Liquid-cooled 1000V 250kW traction inverter for passenger EVs, robotics, aerospace, marine, and industrial vehicles.
Shipping December 2026

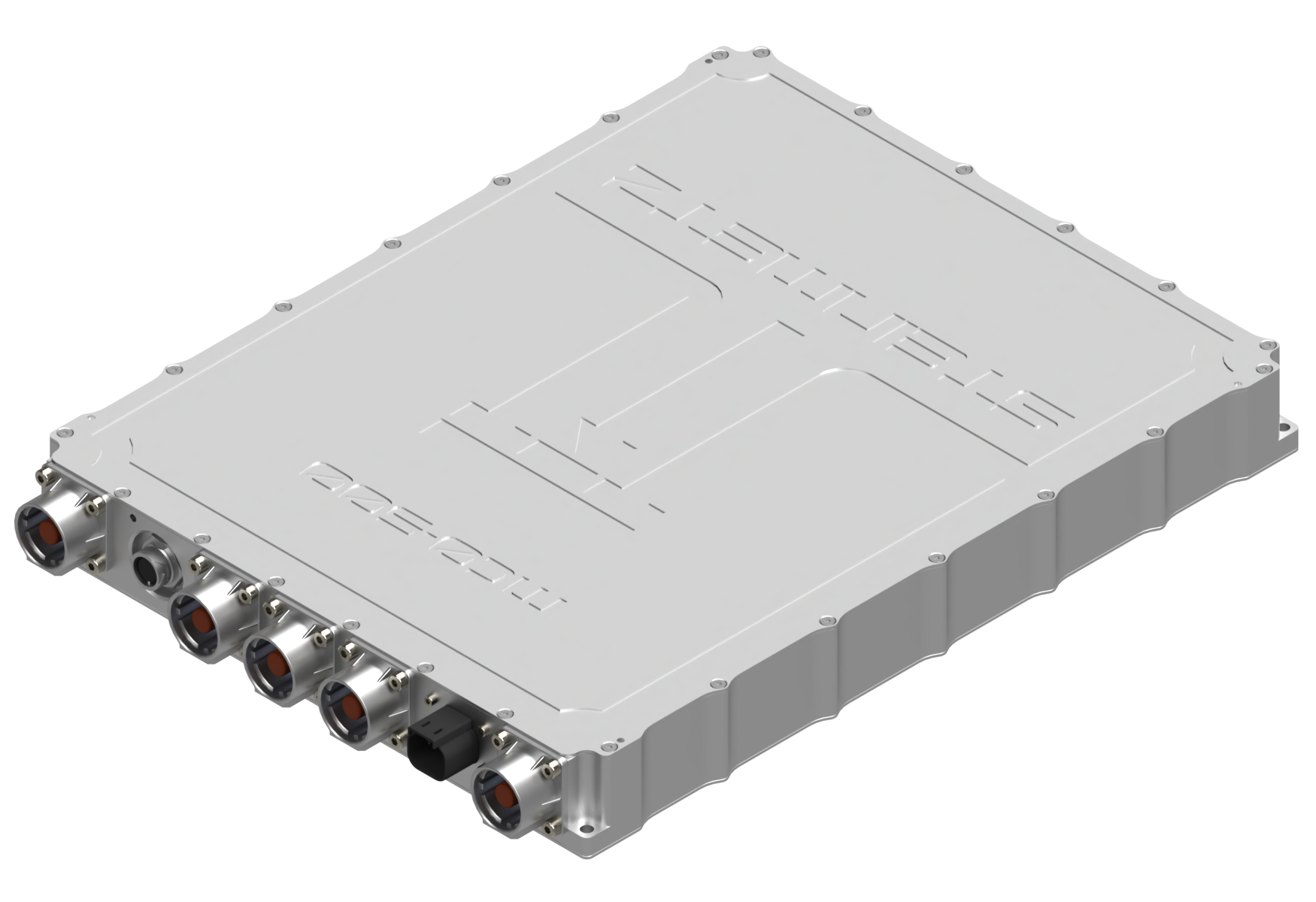

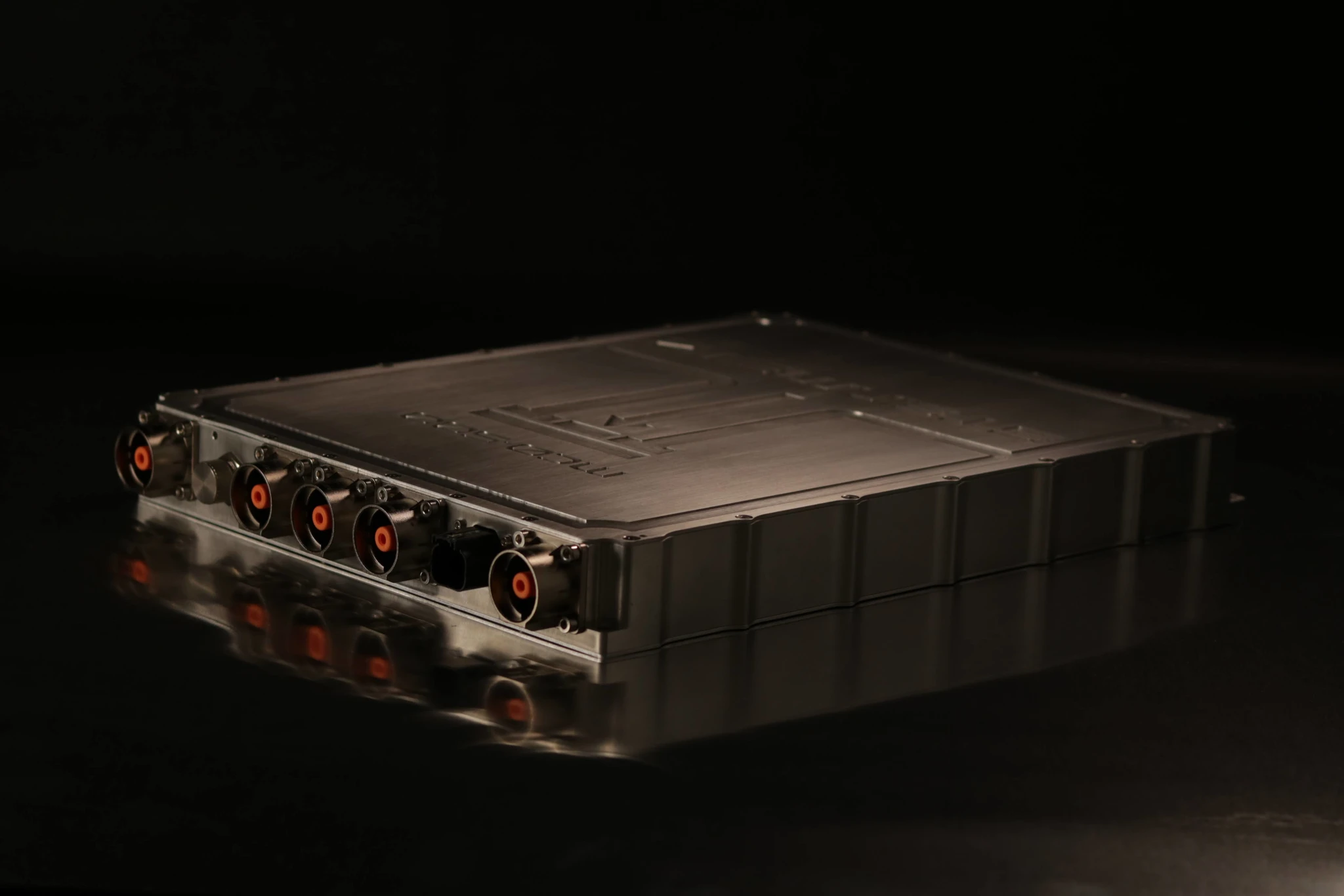

MC0-500High-power 1000V 500kW traction inverter for heavy EVs, buses, marine propulsion, eVTOL, and construction equipment.
Available Now
MC0-10Compact 1000V motor controller for robotics, test stands, and lower-power EV systems.
Coming 2027
MC0-250Liquid-cooled 1000V 250kW traction inverter for passenger EVs, robotics, aerospace, marine, and industrial vehicles.
Shipping December 2026
MC0-500High-power 1000V 500kW traction inverter for heavy EVs, buses, marine propulsion, eVTOL, and construction equipment.
Available Now
Electrical
| MC0-10 | MC0-250 | MC0-500 | |
|---|---|---|---|
| Power | 15kW | 250 kW | 500 kW |
| Operating voltage | 1000 VDC | 1000 VDC | 1000 VDC |
| Breakdown voltage | 1200 VBR | 1200 VBR | 1200 VBR |
| Current | 15 ARMS | 250 ARMS | 500 ARMS |
| Switching frequency (peak) | 100 kHz | 100 kHz | 100 kHz |
| Efficiency | >99% (nom.) | >99% (nom.) | >99% (nom.) |
Mechanical
Custom Power Electronics
We build custom DC-DC converters, bidirectional AC/DC systems, and actuator drivers for automotive, defense, data centers and robotics to quickly give teams the power electronics their products need.
With both our engineering and manufacturing in-house, we keep design, build and test cycles moving quickly, getting high-performance hardware into your hands faster, while delivering industry-best power density.
Built for your system, on timelines that can't be found anywhere else.
Steinmetz Product Features
One Click Auto-Tuning
Hassle-free setup with our internal auto-tuning algorithm, optimizing motor performance instantly—no manual calibration needed.
Open Source Firmware
Open source firmware and software allows you to easily integrate this into your system and customize it to your needs.
Multi-Sensor Support
Compatible with encoders, resolvers, and sensorless operation
Real-Time Monitoring
Advanced, low-latency diagnostics and performance tracking. Compatible with LIN, CAN and Ethernet.
Low EMI Design
Advanced EMI mitigation techniques prevent interference with nearby systems and electronics
Universal Compatibility
All features available across our entire product line.
Proudly Made in America
EV dominance isn’t decided in boardrooms, it’s engineered. We’re building the technology that puts American manufacturing back in the driver’s seat.
